Double Head Automatic Filling Sealing Machine for Sauce Ketchup Paste Cup

Brand Name:	Penglai Pack
Model Number:	PL-820
MOQ:	1
Price:	5000-8000 USD
Payment Terms:	T/T,Western Union,MoneyGram
Supply Ability:	100 SET/MONTH

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE TUV SGS

Voltage:

220V/380V

Automatic Grade:

Automatic,Semi-Automatic

Driven Type:

Electric

Type:

Multi-Function Packaging Machine,Filling Machine,Blister Packaging Machine,Double Sealing Machine,Labeling Machine

Condition:

New

Application:

Food,Chemical,Beverage,Medical,Commodity

Packaging Type:

Bags,Pouch,Film,Foil,Case

Packaging Material:

Plastic,Paper,Wood,Metal,Glass

Function:

Filling,Sealing,Wrapping,Labeling,Slitting

Power:

3KW,200W,2.2KW,1.8kw,2KW

Packing Speed:

120-140bags/min,1500-2000bag/hr,30-80 Bags/min,20-60(bags/min)

Material:

SUS304,SUS304/316,stainless Steel,Product Touching Parts Using 304 Stainless Steel

Name:

Automatic Cosmetic Filling Machine,ertical Automatic Fill Seal Packaging Machine,Powder Packing Machine,Factory Price Automatic Liquid Filling Machine,Weighing And Packing Machine For Liquid/juice/honey/sauce

Packaging Details:

WOODEN CASE

Supply Ability:

100 SET/MONTH

Highlight:

Sauce Automatic Filling Sealing Machine

Double Head Automatic Filling Machine

Ketchup Paste Cup Filling Sealing Machine

Product Description

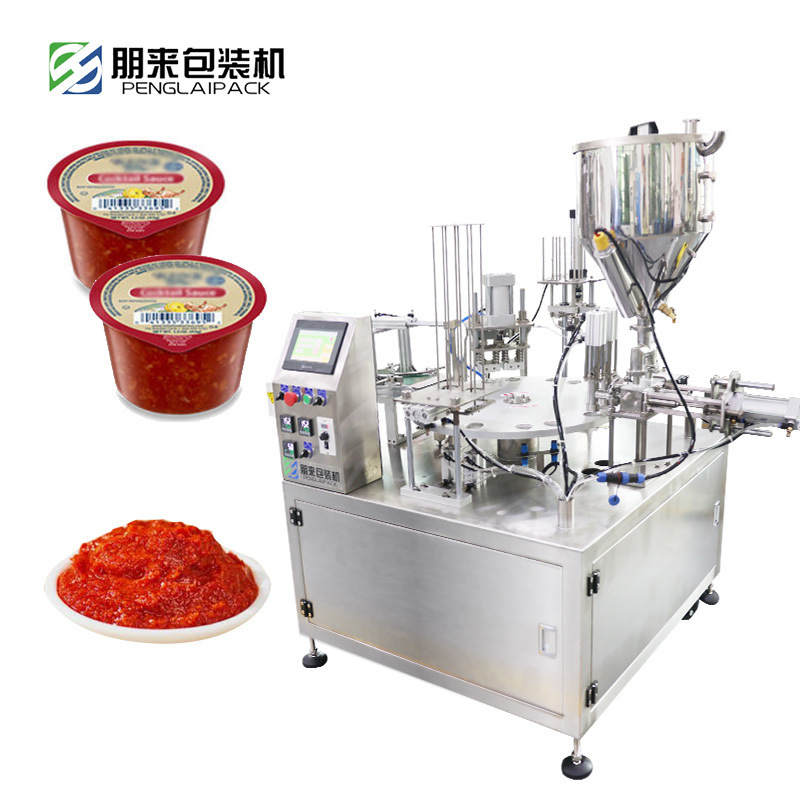

Automatic Sauce Ketchup Paste Cup Double-Head Filling Sealing Machine

Product Overview​

The Double-Head Sauce Filling and Sealing Machine is a high-efficiency, automatic equipment specially designed for the packaging of various (sauces), including tomato sauce, chili sauce, peanut butter, mayonnaise, salad dressing, and more. With its dual-head filling design, it significantly improves production efficiency while ensuring precise filling volume and tight sealing, effectively extending the shelf life of products and maintaining the freshness of sauces. It is an ideal packaging solution for food processing factories, condiment manufacturers, and catering supply enterprises.​

Core Functions​

Dual-Head Synchronous Filling: Equipped with two independent filling heads, the machine can complete filling operations for two cups simultaneously. It supports adjustable filling volume (ranging from 10ml to 500ml, customizable according to customer needs), ensuring uniform filling amount for each cup and reducing product waste.​

Automatic Cup Feeding & Positioning: Adopts a high-precision conveyor belt and photoelectric sensor system to automatically feed empty cups, accurately position them under the filling heads and sealing device. This avoids manual errors and improves the stability of the production line.​

Multi-Mode Sealing: Compatible with various sealing materials, such as plastic films (PE, PP, PET) and aluminum foils. It uses heat-sealing technology with adjustable temperature and pressure, ensuring that the seal is tight, leak-proof, and easy to tear (optional easy-tear design).​

Intelligent Control System: Equipped with a 7-inch touchscreen operation panel, the machine supports one-key start/stop, parameter setting (filling volume, sealing temperature, conveyor speed, etc.), and fault alarm (such as cup shortage, film breakage). The operation is simple and user-friendly, no professional technical background is required.​

Easy Cleaning & Maintenance: The contact parts with sauces (such as filling nozzles, material tanks) are made of 304 stainless steel, which meets food-grade hygiene standards. The detachable design allows for quick disassembly and cleaning, reducing the time for equipment maintenance and ensuring food safety.​

Application Scenarios​This machine is widely used in the packaging of various viscous and semi-viscous products in the food industry, such as:​

Condiments: Tomato sauce, chili sauce, soy sauce, oyster sauce, vinegar (thick type).​

Dairy Products: Yogurt, milk pudding, cheese sauce.​

Bakery & Confectionery: Chocolate sauce, jam, honey.​

Catering Supplies: Salad dressing, ketchup sachets (small cup packaging), mustard sauce.

Parameters

				Model

				PL-820

				Filling Heads

				2

				Filling Volume

				10ml - 500ml (Customizable)

				Filling Accuracy

				±1%

				Sealing Material

				PE/PP/PET Film, Aluminum Foil

				Cup Diameter

				50mm - 150mm (Adjustable)

				Cup Height

				30mm - 100mm (Adjustable)

				Production Capacity

				800 - 1200 Cups/Hour

				Power Supply

				220V/50Hz (110V/60Hz Optional)

				Power

				2.5KW

				Machine Dimension

				1500mm × 800mm × 1400mm (L×W×H)

				Machine Weight

				280KG

				Working Environment

				Temperature: 5℃ - 40℃; Humidity: ≤85% (No Condensation)

Product Advantages​
High Efficiency: Compared with single-head machines, the dual-head design doubles the production capacity, which is suitable for medium and large-scale production needs and helps enterprises improve output.​

Precision & Stability: The use of imported sensors and servo motors ensures accurate filling and stable sealing, reducing product defects and improving product quality.​

Hygiene & Safety: All food-contact parts are made of 304 stainless steel, and the machine is designed in accordance with FDA and CE standards, ensuring compliance with food safety regulations.​

Flexibility & Customization: It can be adjusted according to different cup sizes and filling volumes, and supports customization of special functions (such as nitrogen filling to extend shelf life, date coding device).​

Energy Saving & Environmental Protection: The heat-sealing system adopts energy-saving heating tubes, which reduces energy consumption by 15% compared with traditional machines. The packaging materials are recyclable, in line with environmental protection requirements.​

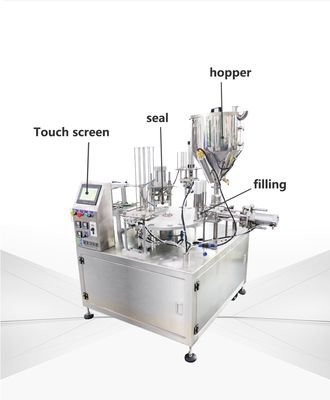

Machine Photos

Company Profile

Guangzhou Penglai Packing Machinery Co.,Ltd is a modern enterprise that engaged in Design, R&D, manufacture and sales of various packing machinery. We are located in Shiji Town, Panyu District, Guangzhou, a city with beautiful environment, advanced software and hardware, and the first standard integrative management.

We mainly produce all kinds of packing machines, such as granule packing machine, powder packing machine, liquid packing machine, hardware packing machine, ultrasonic sealing packing machine, automatic vacuum bag packing machine, filling machine, labeling machine, weighing machine etc. And widely used in food, medicine, tea, metal, pesticide, daily consumable industry.
Every set machine can be customized according to buyer’s special demand.We are always in the business of designing and manufacturing of non-standard machines and production lines.

Your satisfaction is our destination, and we have keen hope to work, study together with you, to become the strong support of your company.

Tags:

Liquid Pouch Filling Machine

Automatic Liquid Packing Machine

Automatic Water Packing Machine

Single Track Automatic Filling Packaging Machine Healthcare Liquid Juice Concentrate

Chat Now

video

Fully Automatic Liquid Packaging Machine Fast Packing Juice Filling 220V

Chat Now

video

SUS304/316 Automatic Sachet Filling Packing Machine 220V 10-100ml/bag

Chat Now

video

Sus304 Automatic Liquid Packaging Machine For Tomato Sauce Fruit Juice

Chat Now

video

Tube Ice Fruit Juice Automatic Liquid Packaging Machine 2KW 220V

Chat Now

Model	PL-820
Filling Heads	2
Filling Volume	10ml - 500ml (Customizable)
Filling Accuracy	±1%
Sealing Material	PE/PP/PET Film, Aluminum Foil
Cup Diameter	50mm - 150mm (Adjustable)
Cup Height	30mm - 100mm (Adjustable)
Production Capacity	800 - 1200 Cups/Hour
Power Supply	220V/50Hz (110V/60Hz Optional)
Power	2.5KW
Machine Dimension	1500mm × 800mm × 1400mm (L×W×H)
Machine Weight	280KG
Working Environment	Temperature: 5℃ - 40℃; Humidity: ≤85% (No Condensation)
