Automatic Liquid Packaging Machine
>
Liquid Paste Sauce Bag Pillow Vacuum Packing Machine

Liquid Paste Sauce Bag Pillow Vacuum Packing Machine

Brand Name: Penglai
Model Number: PL-420
MOQ: 1set
Price: 8000-10000usd
Payment Terms: T/T,Western Union,MoneyGram
Supply Ability: 100sets/month
Detail Information
Place of Origin:
China
Certification:
CE certification
Product Name:
Liquid Paste Sauce Bag Pillow Vacuum Packing Machine
Model:
PL-420YB
Product Name:
Big Liquid Packing Machine
Speed:
20-30bag/min
Power:
5.8kw
Bag Size:
W:80-200mm,L80-300mm
Control System:
PLC Control
Bagtype:
900kg
Dimension:
L2600m*W1700m*H2000m
Packaging Details:
wooden case
Supply Ability:
100sets/month
Highlight:

Liquid Pillow Vacuum Packing Machine

,

Sauce Bag Vacuum Packing Machine

,

Vacuum Liquid Packing Machine

Product Description
Liquid Paste Sauce Bag Pillow Vacuum Packing Machine

Parameter

model PL-420YB
measure range 200-2000ml
bag size W:80-200mm,L:80-300mm
Dose method
Piston pump,Rotor pump,Liquid pump
voltage
220v 1Phase/380v 3phase
power
5.8kw
speed
20-30bag/min
bag type
back seal/side seal

*All specifications are for reference only and can be customized as per customer needs.

Features

  • Adopts Chinese and English dual-language touchscreen with intuitive and easy operation.
  • Equipped with PLC computer control system for more stable running; all parameters can be adjusted without machine shutdown.
  • Supports storage of ten sets of preset parameters, enabling fast and accurate product switching.
  • Servo motor driven film pulling ensures high positioning accuracy.
  • Independent temperature control system achieves a temperature accuracy of ±1°C.
  • Horizontal and vertical sealing temperatures can be controlled independently, perfectly adapting to various packaging materials such as composite film and aluminum foil film.
  • Supports multiple packaging styles, including back sealing, gusset bag, connected bag, hole punching and more.
  • Automatically completes bag forming, sealing, filling, packaging and date printing in one process.
  • Low noise operation and clean working environment.

Application

This machine is suitable for the automatic packaging of a wide range of liquids and pastes across the food, chemical, daily chemical and other industries, including tomato sauce, beef sauce, hot pot base, sesame paste, noodle sauce, jam, butter, cooking oil and waterproof coating liquid.

Products description

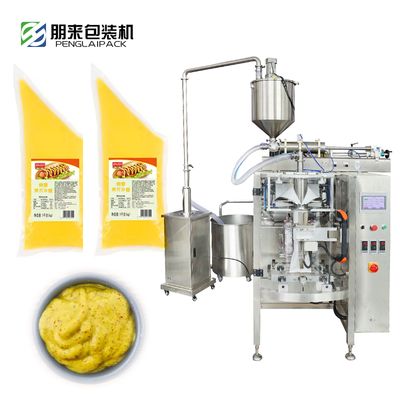

Liquid Paste Sauce Bag Pillow Vacuum Packing Machine 0

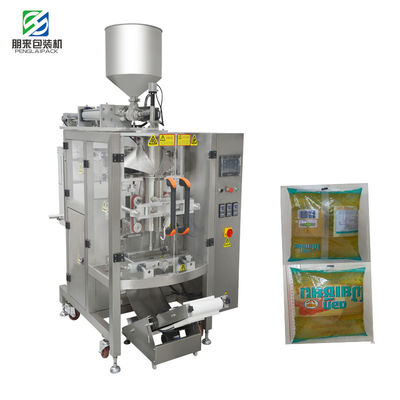

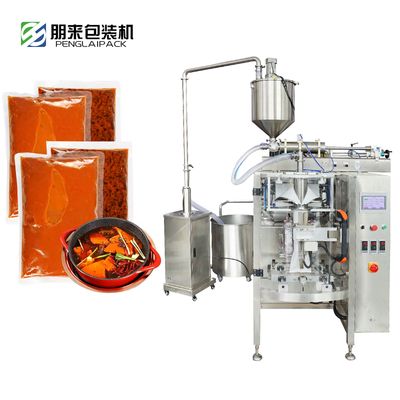

Liquid Paste Sauce Bag Pillow Vacuum Packing Machine 1Liquid Paste Sauce Bag Pillow Vacuum Packing Machine 2

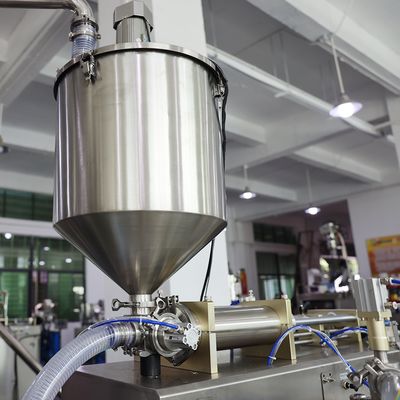

Liquid Paste Sauce Bag Pillow Vacuum Packing Machine 3


Company Profile

Guangzhou Penglai Packing Machinery Co., Ltd. is an integrated enterprise specializing in R&D, manufacturing and sales of packaging equipment.

Located at Building B35, Huachuang Industrial Park, Shiji Town, Panyu District, Guangzhou, the company covers an area of around 6,000 square meters and has over 20 years of dedicated experience in the packaging machinery industry. We are a modern manufacturer capable of custom designing and producing professional packaging equipment tailored to customers’ specific requirements.

The company independently develops a full range of equipment, including multi-lane liquid, granular and powder packaging machines, liquid and granular vacuum packaging machines, ultra-high-speed packaging machines, as well as ultrasonic non-woven fabric packaging machines.

Our packaging machinery is widely applied across industries such as chemicals, daily necessities, food and health care products. Up to now, we have obtained CE, TUV and SGS certifications, together with more than 20 national technical patents.

Liquid Paste Sauce Bag Pillow Vacuum Packing Machine 4
Liquid Paste Sauce Bag Pillow Vacuum Packing Machine 5
Liquid Paste Sauce Bag Pillow Vacuum Packing Machine 6
Liquid Paste Sauce Bag Pillow Vacuum Packing Machine 7
