| Brand Name: | PL |
| Model Number: | PL-350/550/850/1000 |
| MOQ: | 1 |
| Price: | USD10000-14000/unit |
| Payment Terms: | T/T,Western Union |
| Supply Ability: | 500 units in a month |
Destription

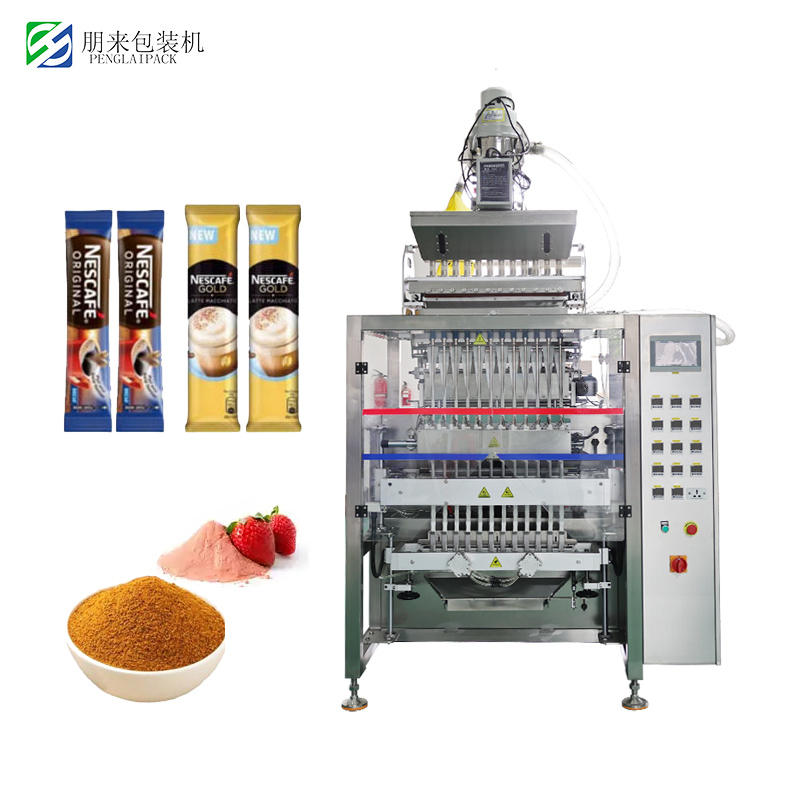

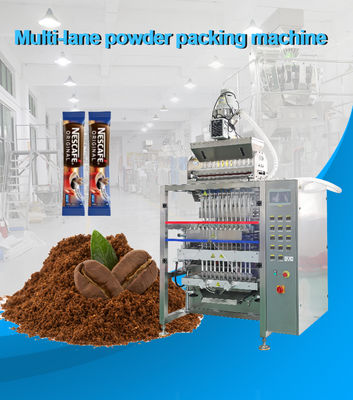

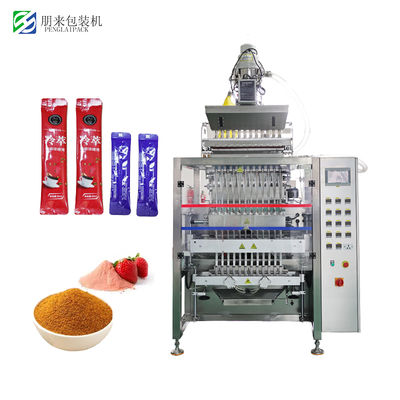

The PenglaiPack multi-lane powder sachet machine was born for high-speed stick & shaped pouches of collagen, coffee or probiotics. 4 or 6 lanes form, fill, seal and cut simultaneously, delivering 30-50 ppm per lane—up to 300 ppm total. Inovance PLC & servo film-pull guarantee ±1 mm repeat accuracy; PID independent temperature control seals 40-170 mm L × 16-84 mm W pouches with constant tension. CNC-machined lane dividers keep every sachet identical; 304/316 L steel product zones meet GMP. Safety door, photo-eye registration and self-diagnostic come as standard. With a footprint of only 1100×990 mm the unit slips into existing rooms and can be extended to a fully automatic line (check-weigher, cartoner) without re-validation.
Packing Bags
Features
1 The INOVANCE brand PLC system is adopted with error prompt formula storage and self-dignosis functions
2 Advanced design to achieve high precision,high speed and high efficiency
3 The l0-inch INOVANCE brand touch screen is adopted,which is convenient and easy to use
4 CNC processing integrated bag maker
5 PID temperature independent control system
6 AirTAC pneumatic components
7 Cross seal independent SMC pneumatic system, can adjust the cross seal response time and pressure, further improve product sealing
8 Standard safety door switch
9 304/316SUS stainless steel is used for the part in contact with materials
10 the heat-sealing servo motor (INOVANCE brand) bag pulling systern cooperates with the photoelectric (Panasonic brand) system to track the color code to ensure that the bag pulling is fast and stable, the bag length is consstent, and the pattern is consistent,
11 The whole machine adopts high quality and durable parts, and the surface of the parts is processed, which improves the durability and stability of the machine again 12,The operating capacity of the whole machine can reach 30-50cut/minnute
13 Highly integrated with PenglaiPack's peripheral products, it can be combined into a fully automated production Iine in the future
14 Adopting flexible module design, it can be customized according to customer needs
Machine Details
Specifications
|
Type
|
4lane
|
6lane
|
|
Bag length
|
max170mm
|
max170mm
|
|
bag width
|
16-84mm
|
16-54mm
|
|
max width of roll film
|
440mm
|
440MM
|
|
packing speed
|
30-50bag/min/lane
|
30-50bag/min/lane
|
|
air consumption
|
0.65mpa
|
0.65mpa
|
|
gas consumption
|
0.2m3/min
|
0.2m3/min
|
|
powder voltage
|
220VAC/50HZ
|
220VAC/50HZ
|
|
powder
|
2.0KW
|
2.2KW
|
|
demension
|
1100MM(L)*990MM(W)*2100MM(H)
|
1100MM(L)*990MM(W)*2100MM(H)
|
|
weight
|
400KG
|
450KG
|
