Ultrasonic Packing Machine
>

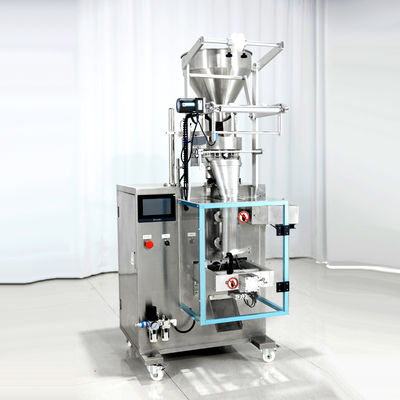

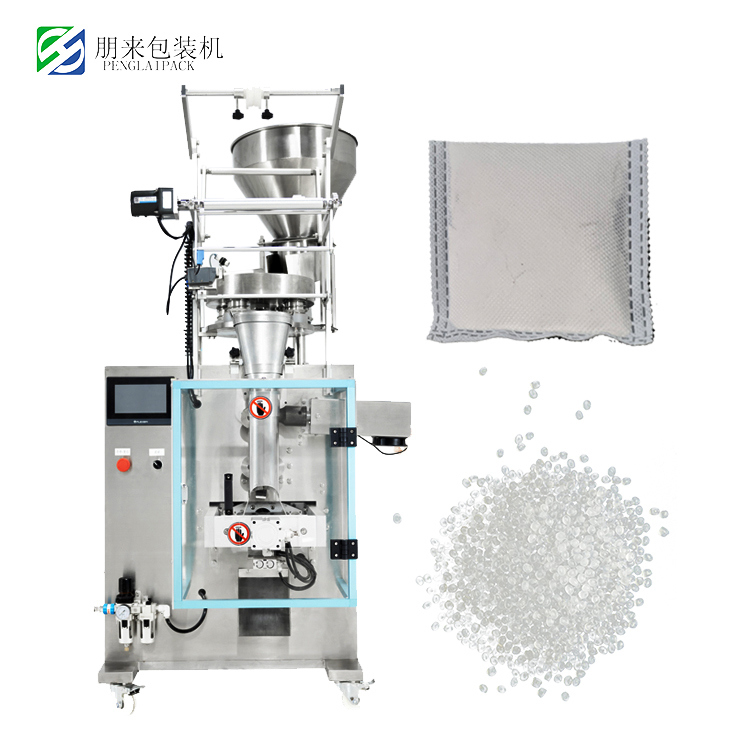

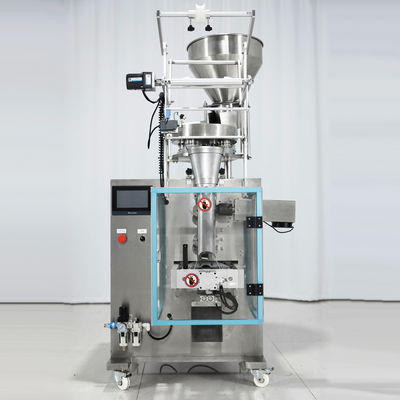

Automatic Granule Filling Machine 30-40bag/Min For Food Packaging

Automatic Granule Filling Machine 30-40bag/Min For Food Packaging

Brand Name: Penglai
Model Number: PL-300
MOQ: 1set
Price: 5600-8000usd
Payment Terms: T/T,Western Union,MoneyGram
Supply Ability: 100sets/month
Detail Information
Place of Origin:
China
Certification:
CE certification
Voltage:
220V 50Hz/2kw
Bag Shape:
Regular Bag/irregular Bag
Dimension:
L850*W1250*H1900mm
Weight:
300kg
Control System:
PLC Control
Dosing Method:
Rotary Measuring Cups
Bag Size:
W50-140mm;L50-Limitless
Model:
PL-300
Packaging Details:
wooden case
Supply Ability:
100sets/month
Highlight:

Automatic Granule Filling Machine 40bag/min

,

Food Granule Filling Machine

,

30Bag/min Filling Sealing Machine

Product Description
automatic spice packaging machine ultrasonic packing machine
Application
This machine is suitable for medical, heath care, food, daily chemical and other industries, such as Chinesemedicine aranules, Chinese herbal
medicine granules, wormwood velvet, marinade packs, foot bath packs, activatedcarbon,desiccant qranules, sachets, coffee beans, bamboo
charcoal adsorbents, high Potassium manga manganateparticles,diatomaceous earth particles, etc.

Equipment performance
1. It is composed of loading hopper, distributor, automatic cold sealing and cutting part, and control box as a whole
2.It is easy to operate, good in quality, safe and durable
3. chinese and Enalish display screen control system, only need to set the reauired parameters (filling amount, bag lenath,etc.) in the
displayable setting unit, and the control system wil automaically optimize and match each action to achieve packaging speed
4.Excellent electronic color code control system can automatically and accurately track the cursor on the packaging film,so that the bag can
obtain a complete and beautiful icon
5.The cuting knife is equipped with a control gear function, and you can choose to cut two or more bags at a time. The automatic packaging
machine can automatically complete the measurement, bag making, filing, sealing, cutting, counting,printing, etc. during the packaging
process. Work
6.Stepping motor control, high precision, no need to adjust other parts to change the length of the bag, and accurate.Roller type sealing, the
bag length can be adjusted arbitrarily and infinitely long
7.The contact area between the bag pulling wheel and the ultrasonic vibrator is smal, and the impact force is small, so
8. the damage to the ultrasonic wave is small, and the service life of the ultrasonic wave is longer
9. The wrapping paper part adopts a self-weight motor pressing paper feeding structure, the feeding length of the wrapping paper is
doubled, and the bag is made with a smooth edge
10. The sealing form is ultrasonic cold sealing, which is suitable for packaging materials such as non-woven fabrics, nylonfilm, DuPont paper,
etc., and the sealing is neat, perfect and firm.

Parameter
model PL-300
measuring range 1-50g
dose range turntable measuring cup/screw feeder
voltage AC220V/50Hz/2KW
speed 30-40bag/min
bag type bag seal/side seal
dimension 1850*1250*1900mm
weight 300kg




Product description
Automatic Granule Filling Machine 30-40bag/Min For Food Packaging 0
Automatic Granule Filling Machine 30-40bag/Min For Food Packaging 1

 Automatic Granule Filling Machine 30-40bag/Min For Food Packaging 2

Automatic Granule Filling Machine 30-40bag/Min For Food Packaging 3

Automatic Granule Filling Machine 30-40bag/Min For Food Packaging 4

Automatic Granule Filling Machine 30-40bag/Min For Food Packaging 5

Automatic Granule Filling Machine 30-40bag/Min For Food Packaging 6

Automatic Granule Filling Machine 30-40bag/Min For Food Packaging 7

Automatic Granule Filling Machine 30-40bag/Min For Food Packaging 8

Automatic Granule Filling Machine 30-40bag/Min For Food Packaging 9

Automatic Granule Filling Machine 30-40bag/Min For Food Packaging 10

Automatic Granule Filling Machine 30-40bag/Min For Food Packaging 11

Automatic Granule Filling Machine 30-40bag/Min For Food Packaging 12

FAQ

  1. Can your machine meet our needs well?

After receiving your inquiry, we will confirm your packing material, packing volume, bag size, packing speed and precision,

and any other requirments, and then give you the proposal according to your specific requirments.

Every machine is customized to meet your needs well.



2. Are you factory or trading company?

We are the factory, and especially R&D, manufacture and sell various packing euipments.

We have engaged in the packing R&D and production over 10 years.

3. What's your payment way?

T/T by our bank account directly, or by trade assurance service, or by West Union, or in cash.



4. How can we make sure about the machine quality after we put the order?

Before delivery, we will send you the pictures and videos for you to check the quality,

and also you can arrange for quality checking by yourself or by your contacts in Guangzhou.



5. We are afraid you won't send us the machine after we send you the money?

Please note our above business license and certificate. And if you don't trust us, then we can use  trade assurance service,

guarantee your money, and guarantee your machine's on-time delivery and machine quality.



6. Why we should choose your company?

We are professtional in packing machines over 10 years, and we provide better after-sales service. You guarantee no risk for our deal.
