| Brand Name: | PL |
| Model Number: | PL-Tea |
| MOQ: | 1 |
| Price: | USD6000-6500、unit |
| Payment Terms: | T/T,Western Union,MoneyGram |
| Supply Ability: | 500 units in a month |
Machine Overview

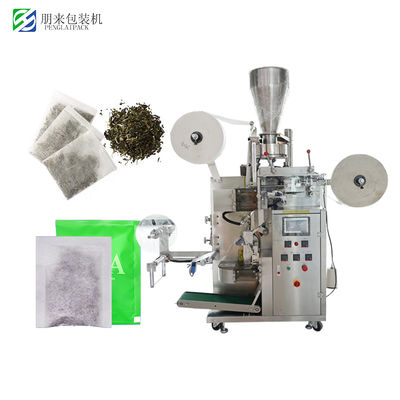

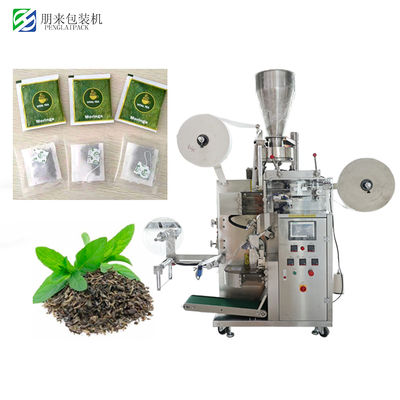

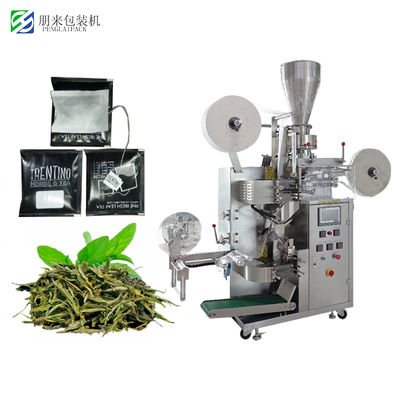

This automatic filter paper tea bag packing machine integrates inner tea bag filling and outer bag sealing in one process. It is ideal for packaging tea leaves, herbal tea, coffee powder, and other granular products. The machine uses 3-side sealing for both inner and outer bags, ensuring a premium appearance and excellent sealing performance. With a speed of 30–45 bags per minute, it is suitable for mid-to-high-end tea brands seeking efficient and elegant packaging.
Specification
The machine is suitable for the dual bag packing of small grain-like materials, such as tea leafs, medicinal tea and healthy teas. Pack broken tea, herb tea, coffee and other similar products.
Technical parameters
|
Model |
PL-Tea |
PL-2T |
|
Bag type |
The inner bag without thread and tag |
The inner bag with thread and tag |
|
Measuring range |
1-10g/1.6-26ml |
|
|
Speed |
40-70 bag/min |
40-60 bag/min |
|
Inner bag size |
W50-80mm l50-90mm |
W50-80mm L50-80mm |
|
Outer bag size |
W70-90mm L65-130mm |
W75-95mm L80-120mm |
|
Power supply |
220V/50HZ |
220V/50HZ |
|
Total power |
3KW |
3KW |
|
Air consumption |
0.2-0.5Mpa |
0.2-0.5Mpa |
|
Air pressure |
0.4-0.6Mpa |
0.4-0.6Mpa |
|
Dimension |
L1200*W1000*H1900mm |
L1200*W1000*H1900mm |
|
Weight |
500KG |
550KG |
