| Brand Name: | PL |
| Model Number: | PL220GSYB |
| MOQ: | 1 |
| Price: | USD5000-7000/set |
| Payment Terms: | T/T,Western Union |
| Supply Ability: | 1500 in stock |

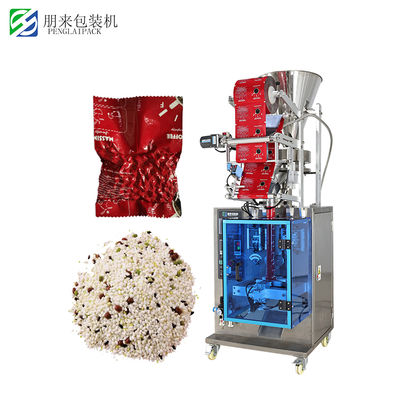

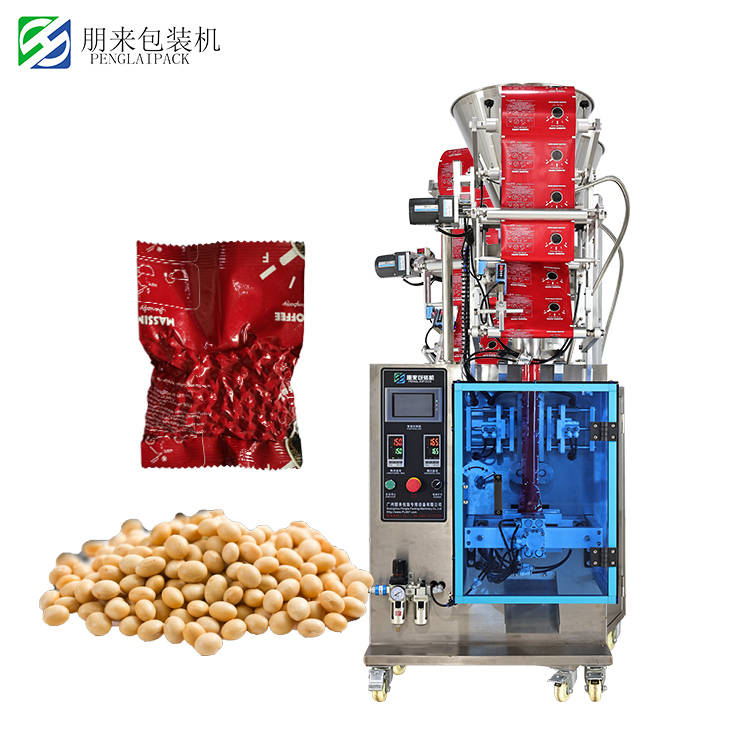

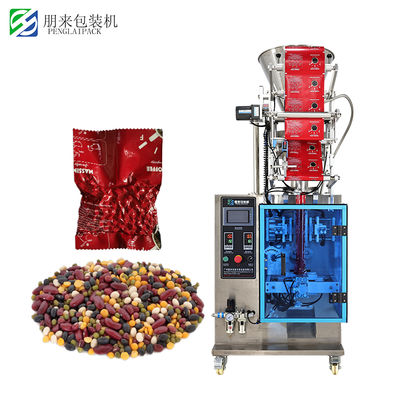

Automatic Back Side Seal Sachet Packer With Servo Dosing 80-150 Bags/Min
Product Overview
Start every production day with steady, high-speed performance. The PL-220GSYB automatic sachet packer turns free-flowing granules—sugar, salt, rice, seeds, nuts, spices or coffee—into perfectly sealed pillow or stick packs at up to 120 cycles per minute. A servo-driven measuring cup guarantees 1-50 g accuracy to ±2 %, while the Panasonic PLC remembers 20 recipes and changes over in under 5 minutes.
Product Parameters
|
model
|
PL-220GSYB
|
|
measuring range
|
1-50g
|
|
bag size
|
(back seal)L20-145mm,W20-100mm;(side seal)L20-145mm,W30-100mm
|
|
dose range
|
Measure Cup
|
|
voltage
|
220V,50-60Hz,2KW
|
|
control system
|
PLC control
|
|
speed
|
80-120bag/min
|
|
bag type
|
back seal/side seal
|
|
dimension
|
L900*W700*H1720mm
|
|
weight
|
300kg
|
|
package material
|
bopp/pe/pet,any heat sealing laminated film roll
|
Machine Details
Company infomation
Guangzhou Penglai Packing Machinery Co., Ltd. was established in 2011 and has been dedicated to intelligent packaging equipment for more than 20 years. Today we are a National High-Tech enterprise integrating R&D, manufacturing, sales and after-sales service. Headquartered in a 6,000 m² modern industrial park in Panyu, Guangzhou, our 30+ mechanical & automation engineers and 120 certified technicians deliver 1,000+ machines every year. All models are CE, TUV, SGS approved and protected by over 20 national patents.
We design and build full-scenario packaging solutions—multi-lane, high-speed, shaped-bag, vacuum, ultrasonic sealing—for granules, powders, liquids and pastes in food, pharmaceutical, cosmetic, chemical and healthcare industries. From stand-alone units to fully automatic lines, every machine can be "mass-customized" to fit your workshop layout, process flow and budget. Our "service before shipment" turnkey approach guarantees smooth start-up and maximum ROI
