High Precision weigher packing machine Multihead packaging machine Automatic Sachet Packaging Machine Multi Function Packaging machine with Z-type Feeder

Brand Name:	Penglai
Model Number:	PL-420CZ-10
MOQ:	1
Price:	6000-20000$USD
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	100units

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,TUV,SGS

Measuring Range:

100-6000g

Bag Size:

W65-150mm L80-450mm

Air Consumption:

0.65-0.8Mpa

Control System:

PLC Control System

Power:

380V/50-60Hz

Speed:

20-50bags/min

Bag Type:

Back Seal, Side Seal

Weight:

1200KG

Dimension:

3500*2150*3200mm

After-sale Service:

Lifetime Online Technical Support, Video Support, Spare Parts Suppliment

Warranty:

1 Year Warranty

Packaging Details:

Wooden cases

Supply Ability:

100units

Highlight:

High Precision Combination Weigher Packaging Machine

Intelligent Operation Multihead Computer Combination Weigher

Versatile Adaptability Z-Type Feeder

Product Description

Combination Weigher Packaging Machine with Z-Type Feeder

As a core solution for automated quantitative packaging in various industries, the combination weigher packaging machine integrated with a Z-type feeder realizes a seamless connection between material conveying and precision weighing-packaging. This integrated system significantly improves production efficiency, ensures weighing accuracy, and reduces material waste, making it an indispensable equipment for modern manufacturing enterprises.

Combination Weigher Packaging Machine: Precision and Efficiency Redefined

The combination weigher, also known as a multihead computer combination weigher, is an advanced automatic quantitative weighing device powered by intelligent computer algorithms. Unlike traditional single-hopper weighing equipment, it features multiple independent weighing hoppers operating simultaneously, achieving rapid and precise weight matching through high-speed data analysis.

Core Working Principle

The workflow of the combination weigher is highly automated and efficient. First, materials are evenly distributed to each feeding hopper via a vibrating feeder. Each weighing hopper then independently measures the material weight and transmits real-time data to the central control system. The integrated PLC control system quickly calculates all possible weight combinations and selects the one closest to the target weight, ensuring consistent packaging quality. Finally, the qualified material combination is discharged into the packaging unit to complete bag making, sealing, date coding, and counting in one go.

Key Features

High Precision & Efficiency: Equipped with high-resolution load cells, the weighing accuracy ranges from ±0.1g to ±1g, meeting strict quality control requirements. The maximum packaging speed can reach 120 bags per minute, significantly outperforming manual weighing and traditional equipment.
Intelligent Operation: Adopting a full-computer touch screen man-machine interface, the operation is simple and intuitive. The internationally renowned brand PLC control system and imported electrical components ensure stable performance and reliable operation, with automatic fault alarm functions to minimize downtime.
Versatile Adaptability: Suitable for granular, blocky, spherical, and irregular materials such as nuts, candies, puffed foods, frozen foods, pet food, and seeds. It supports various bag types including pillow bags, gusset bags, and side seal bags, compatible with heat-sealable composite materials like polyester/polyethylene and aluminum foil composites.
Modular Design: The open-frame construction and tool-less adjustable components facilitate easy cleaning, maintenance, and material changeover. It can be customized with optional devices such as nitrogen charging systems, anti-static devices, and vacuum sealing units according to customer needs.

Z-Type Feeder: Efficient and Gentle Material Conveying

The Z-type feeder (also known as Z-type bucket elevator) is a high-performance conveying equipment perfectly matched with the combination weigher. It integrates horizontal and vertical conveying into one unit, replacing the need for multiple separate conveying devices and optimizing workshop space utilization.

Working Principle

Materials are fed into the hoppers from the inlet, lifted vertically by the chain-driven hoppers to the top of the machine, and then flipped downward to discharge into the receiving trough. The entire conveying process is completed in a closed casing, ensuring no material leakage or dust emission. The lower part is equipped with a counterweight lever tensioning device that maintains constant tension automatically, preventing chain slipping or disengagement.

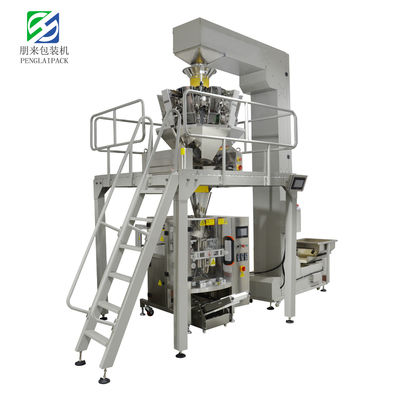

High Precision weigher packing machine Multihead packaging machine Automatic Sachet Packaging Machine Multi Function Packaging machine with Z-type Feeder 0

Features

1.Chinese and English touch screen display, intuitive and simple operation

2.Plc computer control system, the operation is more stable, and any parameter can be adjusted without stopping the machine

3.An groups of parameters can be stored, and the replacement of varieties is more accurate

4.The servo motor is used to pull and touch, and the positioning is more accurate

5.The packaging styles are diversified, such as back sealing, gusseting, connected bag, punching, etc.

6.The production of bag making, sealing, packaging, and date printing is completed at one time.

7.Servo fim feeding system, horizontal sealing pneumatic contro, accurate positioning, excelent perfommance of the whole

madhine Maximizing the reliability and high degree of intelligence

8.The cleaning function can keep the hopper in the open state, which is convenient for daily cleaningand maintenance

9.lP65 waterproof and dust-proof design

10.The ropening angle of the motor can be set arbitrarily according to the material characteristics

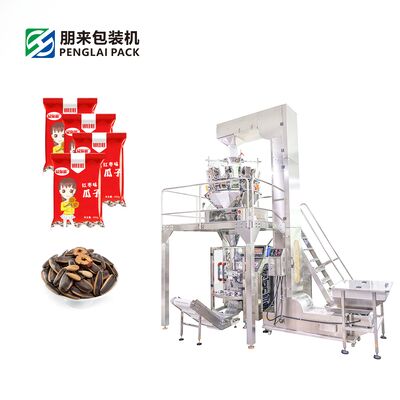

High Precision weigher packing machine Multihead packaging machine Automatic Sachet Packaging Machine Multi Function Packaging machine with Z-type Feeder 1

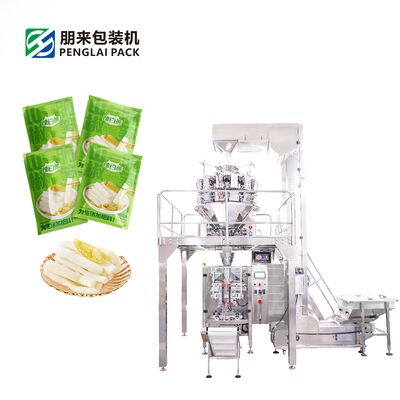

High Precision weigher packing machine Multihead packaging machine Automatic Sachet Packaging Machine Multi Function Packaging machine with Z-type Feeder 2

High Precision weigher packing machine Multihead packaging machine Automatic Sachet Packaging Machine Multi Function Packaging machine with Z-type Feeder 3

High Precision weigher packing machine Multihead packaging machine Automatic Sachet Packaging Machine Multi Function Packaging machine with Z-type Feeder 4

High Precision weigher packing machine Multihead packaging machine Automatic Sachet Packaging Machine Multi Function Packaging machine with Z-type Feeder 5

High Precision weigher packing machine Multihead packaging machine Automatic Sachet Packaging Machine Multi Function Packaging machine with Z-type Feeder 6

High Precision weigher packing machine Multihead packaging machine Automatic Sachet Packaging Machine Multi Function Packaging machine with Z-type Feeder 7

High Precision weigher packing machine Multihead packaging machine Automatic Sachet Packaging Machine Multi Function Packaging machine with Z-type Feeder 8

High Precision weigher packing machine Multihead packaging machine Automatic Sachet Packaging Machine Multi Function Packaging machine with Z-type Feeder 9
