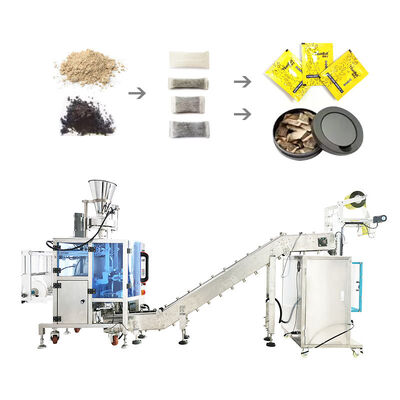

1. The automatic production line can complete the production processes of snus packaging, canning, capping, round bottle labeling,flat labeling, coding, etc., saving labor costs.
2. It has the functions of self-diagnosis and fault prompt.
3. PLC intelligent control, stable operation, adjustable speed, parameter setting via touch screen, support for multiple languages, simple operation. 4. All the parts in contact with materials are made of stainless steel and non-toxic and corrosion-resistant plastic, which meets the requirements of equipment and food packaging.
5. Provide a variety of customized solutions, adapt to more supporting machines, and improve production efficiency.
Specification
Product name
Multi Lanes granule Filling Packing Machine
Model
PL-350
PL-550
PL-850
PL-1000
Packing Lane
4 lanes-10 lanes
Bag width
16-84mm
16-54mm
16-40mm
16-26mm
Bag length
max 170mm, if longer than 170mm, we can customize machine for client.
Bag style
stick back center seal, 3 side seal, 4 side seal, irregular shape bag, round corner bag stick etc.
Dosing method
servo rotate measuring cups filler
Packing speed
30-50 cust/lane/min
Roll ID
Standard 75mm
Max roll OD
Suggest max 350mm
Control system
PLC Control and touch screen
Power
380V 50HZ 3 PHASE
Air consumption
7L/Min
Details Images
Rotor pump filler by servo control
CNC bag forming and vertical sealing
Pneumatic film cutting knife can also be fine-tuned left and right
