4/6 Lane Powder Packing Machine 30-50 Ppm 220V Servo For Back Seal Pouches

Brand Name:	PL
Model Number:	PL-350/550/850/1000
MOQ:	1
Price:	USD10000-14000
Payment Terms:	L/C,Western Union
Supply Ability:	500 units in a month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

Multi-Lane Powder Shaped Pouch Machine

Lane Qty:

4/6/8/10 Lanes (optional)

Max Speed:

30-50 Bags/min/lane, Total Up To 300 Ppm

Bag Size:

30-50 Bags/min/lane, Total Up To 300 Ppm

Control:

Siemens PLC + Servo, 10" Touch Screen

Contact Part:

SUS304 (316L Optional)

Air & Power:

0.65 MPa, 0.2 M³/min; 220 VAC 50 Hz 2.0-2.2 KW

Advantage:

CNC Bag Former, Colour Mark Tracking, Recipe Memory

Packaging Details:

wooden case

Supply Ability:

500 units in a month

Highlight:

6 Lane Powder Packing Machine

Powder Packing Machine 30 Ppm

Back Seal Pouches Packing Machine

Product Description

CE Automatic Vertical Multi lane Instant Coffee Stick Pack

Sachet Powder Packing Machine with Auger Fill

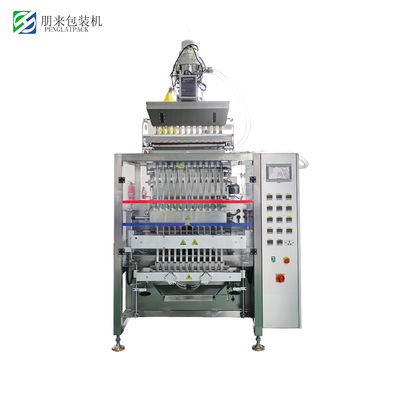

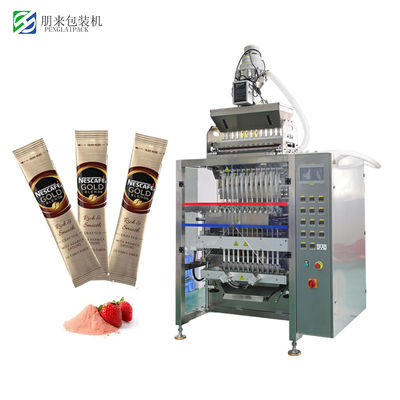

Machine Overview

The PenglaiPack multi-lane powder sachet machine was born for high-speed stick & shaped pouches of collagen, coffee or probiotics. 4 or 6 lanes form, fill, seal and cut simultaneously, delivering 30-50 ppm per lane—up to 300 ppm total. Inovance PLC & servo film-pull guarantee ±1 mm repeat accuracy; PID independent temperature control seals 40-170 mm L × 16-84 mm W pouches with constant tension. CNC-machined lane dividers keep every sachet identical; 304/316 L steel product zones meet GMP. Safety door, photo-eye registration and self-diagnostic come as standard. With a footprint of only 1100×990 mm the unit slips into existing rooms and can be extended to a fully automatic line (check-weigher, cartoner) without re-validation.

4/6 Lane Powder Packing Machine 30-50 Ppm 220V Servo For Back Seal Pouches 0

Key attributes

packaging material

Plastic, Wood

packaging type

Bags, Film, Foil

application

Food, Commodity, Chemical, Machinery & Hardware

driven type

Electric

warranty

1 Year

Voltage

220V

function

FILLING, Wrapping, weighing and packaging

automatic grade

Automatic

video outgoing-inspection

Provided

machinery test report

Not Available

key selling points

Multifunctional

core components

motor, PLC

After-sales Service Provided

Video technical support, Field installation, commissioning and training, Online support, Field maintenance and repair service, Free spare parts

Weight (KG)

1050

place of origin

GUANGDONG

brand name

PENGLAI

dimension(l*w*h)

2100(L)X 900(W)X 1290(H)mm

Dosage

1-30 g

Main Function

Multi-Lane Powder Packing Machine

Bag width

Max 40 mm

Film width

Max 840 mm

Appearance

Stainless steel

Bag type

Back seal/three side seal/four side seal

Packing speed

40 Bags/min/lanes

Air consumption

0.4cbm/min, 0.6-0.8Mpa

Dimension

1100*1000*2300mm

Packaging and delivery

Selling Units

Single item

Single package size

100X80X150 cm

Single gross weight

1000.000 kg

4/6 Lane Powder Packing Machine 30-50 Ppm 220V Servo For Back Seal Pouches 1

Pcking Mchine Details

4/6 Lane Powder Packing Machine 30-50 Ppm 220V Servo For Back Seal Pouches 2

4/6 Lane Powder Packing Machine 30-50 Ppm 220V Servo For Back Seal Pouches 3

Product Paramenters

Model	PL-350	PL-550	PL-850	PL-1000
Film range	≤350mm	≤550mm	≤850mm	≤1000mm
Bag size	Bag width: 16-80mm, Bag length max 170mm ( Pls contact seller to offer you a exact model according to your actual package size demands)
Filling Volume	1-50g, or customized according to buyer's demands.
Application	for filling packing any powder product
Package Material	Any laminated plastic material
Packing Speed	30-50 cuts/lane/min ( depends on real product testing)
Voltage	380V 50HZ
Power	4.5kw	5.2kw	6kw	7kw
Air source	7L/min
Final bag shape	3 side seal, 4 side seal, round corner stick, irregular shape packing etc.

4/6 Lane Powder Packing Machine 30-50 Ppm 220V Servo For Back Seal Pouches 4

4/6 Lane Powder Packing Machine 30-50 Ppm 220V Servo For Back Seal Pouches 5

FAQ

1. Can your machine meet our needs well?

After receiving your inquiry, we will confirm your packing material, packing volume, bag size, packing speed and precision, and any other requirments, and then give you the proposal according to your specific requirments. Every machine is customized to meet your needs well.

2. Are you factory or trading company?

We are the factory, and especially R&D, manufacture and sell various packing euipments. We have engaged in the packing R&D andproduction over 10 years.

3. What's your payment way?

T/T by our bank account directly, or by alibaba trade assurance service, or by West Union, or in cash

4. How can we make sure about the machine quality after we put the order?

Before delivery, we will send you the pictures and videos for you to check the quality, and also you can arrange for quality

checking by yourself or by your contacts in Guangzhou.

5. We are afraid you won't send us the machine after we send you the money?

Please note our above business license and certificate. And if you don't trust us, then we can use alibaba trade assurance

service, guarantee your money, and guarantee your machine's on-time delivery and machine quality.

6. Why we should choose your company?

We are professtional in packing machines over 10 years, and we provide better after-sales service. You guarantee no risk for our deal.

4/6 Lane Powder Packing Machine 30-50 Ppm 220V Servo For Back Seal Pouches 6

4/6 Lane Powder Packing Machine 30-50 Ppm 220V Servo For Back Seal Pouches 7

4/6 Lane Powder Packing Machine 30-50 Ppm 220V Servo For Back Seal Pouches 8
